Polishing Machine
The unit is used after picking of hardware items, automobile parts needless, pins, spokes, rivets, screws, nuts, washers, etc. The unit is heavy duty horizontal placed polish machine made out of M.S sheet duly fitted with 440volt AC motor with V-belt driven for 35-40 RPM of the barrel. The unit is fitted with a ΒΌ HP vertical pump and heater to heat up the caustic base solution.

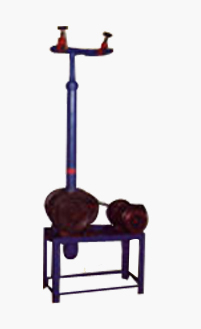

Air Agitation Unit
Agitation in Bright (Ni /Acid Zinc / Acid Copper) plating solution is must as it frequently renewing the cathode film thus decreasing polarisation and obtain higher current density with finer grain and faster rate of deposition. The unit is a rotary blower filted with motor and mounted in an angular structure.
| Model | Air Pressure | Motor | Solu to Blow |
|---|---|---|---|
| MINI 1 | Cu. Ft/Mi n. | 1/4 HP | 150 Lts. |
| MINI II | 1/4 HP | 350 Lts. | |
| No. 36 | 9.5 | 2 HP | 1500 Lts |
| No. 44 | 19.0 | 2 HP | 2500 Lts |
| No. 59 | 69.0c | 5 HP | 5000 Lts |
Heat Chamber
The demand of heat chamber is growing day by day in plating industry. This unit is a better system for drying job items of various sizes & got advantages over centrifugal dryer like no vibration, no mechanical or electrical sound with auto cut system for temperature and time. The cores are made of M..S sheet/ steel sheet and steel tray fitted with nets or trolley fitted with hanger. The heat chambers are highly efficient and Steady enough to ensure smooth trouble free services.
